Finned Tubes for Fired Heater Applications

Fired heaters are among the most thermally demanding pieces of equipment in oil & gas, petrochemical, and power generation plants. They run continuously under extreme heat, aggressive flue gas conditions, and tight efficiency requirements — which means every tube inside them has to be matched precisely to the zone it serves.

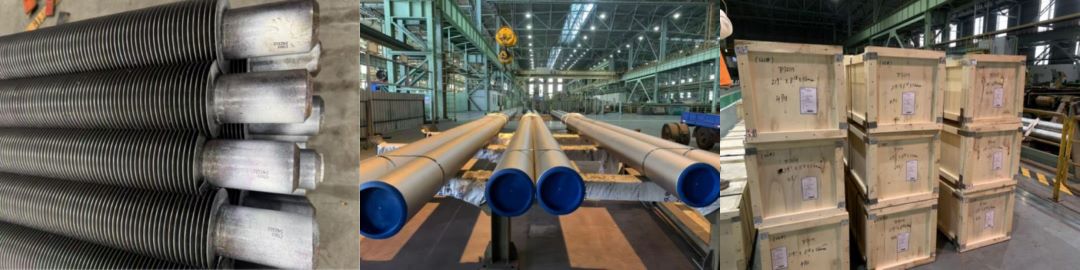

SINCOO recently completed the supply of 1,292.1 tons of finned tubes for a fired heater project, covering eight material grades and a wide size range, all finned to a single quality standard and delivered on one coordinated timeline. Here's a closer look at the project and what makes finned tube supply for fired heaters such a demanding scope.

What a Fired Heater Does

A fired heater — also called a process furnace — generates heat by burning fuel inside a refractory-lined firebox and transfers that heat to process fluid flowing through tubular coils. It typically consists of two main zones:

1. Radiant section: where tubes absorb heat directly from the flame, operating under the highest heat flux in the unit.

2. Convection section: located above the radiant zone, where residual heat in the flue gas is recovered before it exits through the stack. This is where finned tubes are most commonly used, since fins increase external surface area and allow more heat to be extracted from the flue gas as it cools on its way out.

Because the radiant and convection sections see very different temperatures and flue gas exposure, a single fired heater unit often requires several different tube materials working together — which is exactly the challenge this project was built around.

Project Snapshot

Total volume delivered: 1,292.1 tons of finned tubing

Carbon & Alloy Steel — 867.6 tons

●Materials: Gr.B, P11, P22, P9

●Size range: OD 48.3–406.4 mm, WT 3.68–33.32 mm

These grades were specified for the moderate-temperature zones of the convection section, where chrome-moly alloy steels like P11, P22, and P9 provide the high-temperature strength and creep resistance needed for long-term reliability without the added cost of stainless or nickel alloy.

Stainless Steel & Nickel Alloys — 424.5 tons

●Materials: 304, 304H, 310H, 321, 321H, 347H, N08810

●Size range: OD 48.3–406.4 mm, WT 3.68–33.32 mm

For the hotter zones closer to the radiant section, where flue gas temperatures and oxidation risk climb sharply, austenitic stainless grades and nickel-iron-chromium alloy N08810 were used. The "H" grades in particular (304H, 321H, 347H, 310H) are controlled-carbon variants developed specifically for improved creep rupture strength at sustained high temperatures — a critical requirement for tubes operating close to the firebox.

Finning Method: High-Frequency Welding

All tubes in this project were finned using high-frequency (HF) welding, which fuses helical steel fins to the tube body through induction heating and resistance pressure. This method produces a strong, metallurgically sound bond with minimal heat-affected zone distortion — giving the finished tube reliable thermal conductivity and mechanical integrity even under the repeated thermal cycling that fired heaters experience over years of operation.

Multi-Spec Supply Is the Real Challenge

Fired heater projects rarely run on a single tube grade. As flue gas moves from the radiant section through the convection zone, both temperature and oxidation exposure drop step by step — and the tube material needs to match each step. Specify too conservatively and costs balloon unnecessarily; specify too lightly and the tube risks early oxidation or fin detachment.

Managing eight material grades — from carbon steel through nickel alloy — across a single project scope meant close coordination between procurement, mill scheduling, and quality control from the first order to final delivery, while holding consistent dimensional tolerances across the full OD 48.3–406.4 mm and WT 3.68–33.32 mm range.

Project Highlights

1. A wide range of materials and sizes engineered to meet the complex, zone-specific performance requirements of a modern fired heater

2. Fast technical response and reliable delivery maintained throughout the project, even with the added complexity of multiple grades and specifications

Repeat orders from the client following the project — the clearest sign that both the product quality and the service behind it held up under real project pressure

Looking Ahead

Fired heater projects continue to demand tighter thermal efficiency, longer service life, and more precise material selection zone by zone. Projects like this one reflect what SINCOO focuses on: delivering multi-spec metal solutions for complex, high-temperature applications without compromising on lead time, consistency, or technical support.

Planning a fired heater or convection section tube supply for your next project?

Get in touch with the SINCOO team to discuss material selection, sizing, and delivery timelines for your application.
